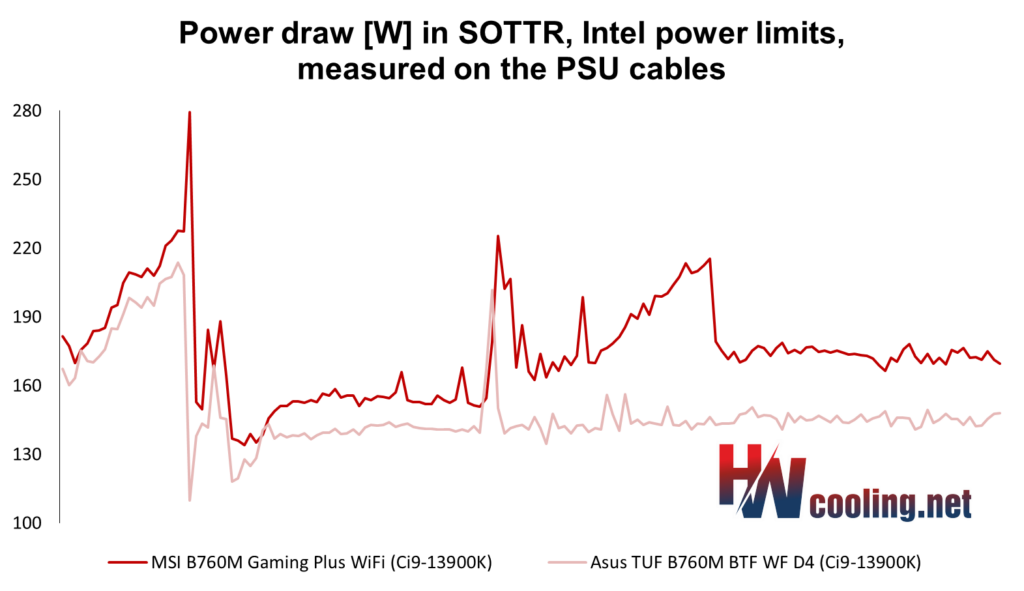

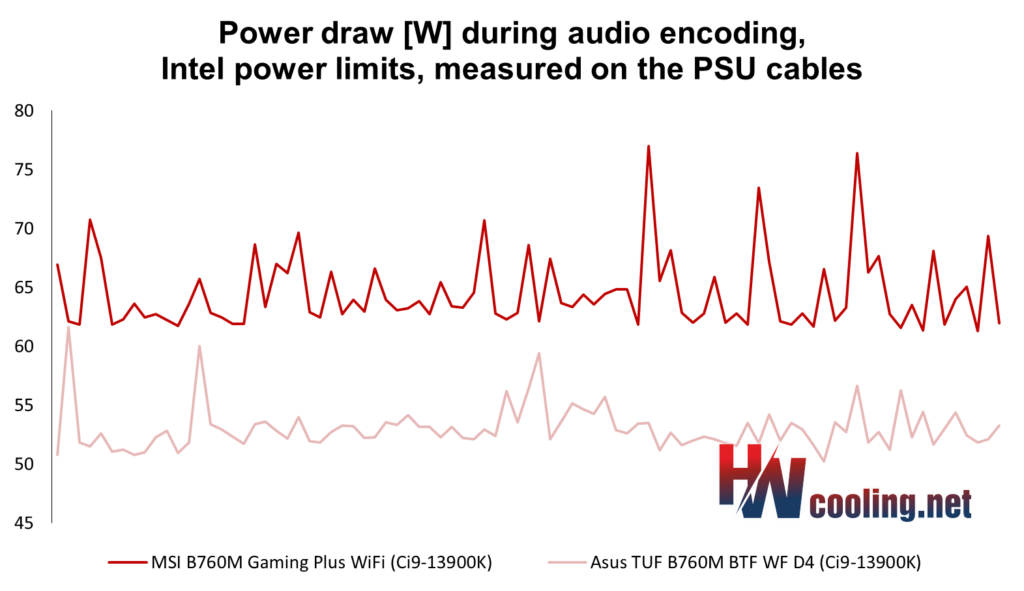

Power draw with power limits
The seemingly inconspicuous motherboard hides something you probably wouldn’t expect, it has both HDMI and DisplayPort video outputs doubled, in pairs. Otherwise, the B760M Gaming WiFi is an affordable solution also suitable for higher-end Intel Core processors designed for the LGA 1700 platform with DDR5 memory. Meanwhile, due to the smaller MicroATX format, you can also fit the motherboard into smaller cases.
Analysis of power draw with power limits
Continue: Achieved CPU clock speed
